Galaxy Carpet Cleaning Equipment from EDIC

GALAXY 12 GALLON / GALAXY PRO 17 GALLON

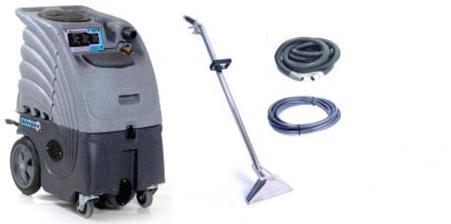

INCLUDES 25' HOSE SET AND DUAL JET WAND

Great engineering and forward thinking have always been the force behind the Galaxy extractors. Life's little decisions just got a whole lot easier ! You can purchase any Galaxy with out heat and if you change your mind, no problem. Simply order our exclusive new external heater, and away you go. Placing the heater on the outside of the machine insures that everything on the inside runs cooler, extending the life of the vacuum and pump motors. When an internally heated extractor has problems with its heater, and most of the time that is what happens if something were to go wrong, the machine must go into the shop or be fixed before it could be used again. With the new Galaxy system the heater fits snugly onto the extractor but if something were to happen to it the Heat N' Run could be taken off the extractor within minutes and the extractor could be used with out the heater. What does that mean for you ? You are not down for more than a couple of minutes if something were to happen to your heater. You don't loose business and you keep making money ! Anyway you look at it, the heat ready galaxy offers the ultimate in convenience and flexibility.

EDIC Galaxy carpet cleaning machine carpet cleaning machines - EDIC

SPECIFICATIONS

	Solution Tank	12 gallon



	Recovery Tank	11 gallon



	Solution Pressure	100/150/250 PSI



	Vacuum Motor	Dual high performance 2-stage and 3-stage



	Water Lift	150"/180"/210"



	Tank Construction	Polyethylene



	Baseplate	1/4" aluminum



	Rear Wheels	10 inches, non-marking



	Casters	4 inches



	Power Cord	50 ft. detachable



	Hose Assembly	25 ft.



	Wand	Deluxe dual-jet S-bend stainless steel



	Dimensions	35"H x 31"L x 18"W



	Weight	78/87/83/89/92 lbs.



	Shipping Weight*	94/103/99/105/108 lbs.



	Ship Dimensions	35" x 31 " x 19 "


	Electrical Draw	15/17/15/15/15 amps
*For units with heat, add 14 lbs. to ship weight.

WARRANTY 6 years on tank, 1 year on parts and labor

MODEL	SIZE	PUMP	VACUUM	EXTERNAL HEATER	CORDS	SALE PRICE
EL SERIES - INCLUDES 15' HOSE SET AND SINGLE JET WAND
2033EL	12 GAL	100 PSI	DUAL 2 STAGE	NO	1	1065.00
2033EL-EH	12 GAL	100 PSI	SINGLE 3 STAGE - 136" WL	1200 WATT	1	1329.00
12 GALLON GALAXY HEAT READY EXTRACTORS - INCLUDES 25' HOSE SET AND DUAL JET S BEND WAND
2000SX-HR	12 GAL	100 PSI	DUAL 2 STAGE -150" WL	NO	1	1235.00
2000SX-HRH	12 GAL	100 PSI	DUAL 2 STAGE - 150" WL	2000 WATT	2	1490.00
2000MX-HR	12 GAL	150 PSI	DUAL HI PRO 2 STAGE- 170" WL	NO	1	1288.00
2000MX-HRH	12 GAL	150 PSI	DUAL HI PRO 2 STAGE- 170" WL	2000 WATT	2	1543.00
2000DX-HR	12 GAL	250 PSI	DUAL HI PRO 2 STAGE- 170" WL	NO	1	1371.00
2000DX-HRH	12 GAL	250 PSI	DUAL HI PRO 2 STAGE- 170" WL	2000 WATT	2	1626.00
2000PX-HR	12 GAL	250 PSI	DUAL 3 STAGE- 190" WL	NO	2	1425.00
2000PX-HRH	12 GAL	250 PSI	DUAL 3 STAGE- 190" WL	2000 WATT	3	1680.00
2000BX-HR	12 GAL	500 PSI	DUAL 3 STAGE- 190" WL	NO	1	1509.00
2000BX-HRH	12 GAL	500 PSI	DUAL 3 STAGE- 190" WL	2000 WATT	2	1764.00
2000CX-HR	12 GAL	500 PSI	DUAL 3 STAGE- 190" WL	NO	1	1559.00
2000CX-HRH	12 GAL	500 PSI	DUAL 3 STAGE- 190" WL	2000 WATT	2	1814.00
2000FX-HR	12 GAL	500 PSI	DUAL 3 STAGE- 190" WL	NO	2	1750.00
2000FX-HRH	12 GAL	500 PSI	DUAL 3 STAGE- 190" WL	2000 WATT	3	1999.00
17 GALLON GALAXY HEAT READY EXTRACTORS - INCLUDES 25' HOSE SET AND DUAL JET S BEND WAND
2700MX-HR	17 GAL	150 PSI	DUAL HI PRO 2 STAGE- 170" WL	NO	1	1368.00
2700MX-HRH	17 GAL	150 PSI	DUAL HI PRO 2 STAGE- 170" WL	2000 WATT	2	1623.00
2700DX-HR	17 GAL	250 PSI	DUAL HI PRO 2 STAGE- 170" WL	NO	1	1451.00
2700DX-HRH	17 GAL	250 PSI	DUAL HI PRO 2 STAGE- 170" WL	2000 WATT	2	1699.00
2700PX-HR	17 GAL	250 PSI	DUAL 3 STAGE- 190" WL	NO	1	1502.00
2700PX-HRH	17 GAL	250 PSI	DUAL 3 STAGE- 190" WL	2000 WATT	2	1758.00
2700BX-HR	17 GAL	500 PSI	DUAL HI PRO 2 STAGE- 170" WL	NO	1	1717.00
2700BX-HRH	17 GAL	500 PSI	DUAL HI PRO 2 STAGE- 170" WL	2000 WATT	2	1972.00
2700CX-HR	17 GAL	500 PSI	DUAL 3 STAGE- 190" WL	NO	1	1810.00
2700CX-HRH	17 GAL	500 PSI	DUAL 3 STAGE- 190" WL	2000 WATT	2	2065.00
2700FX-HR	17 GAL	500 PSI	DUAL HI PRO 3 STAGE- 210" WL	NO	2	2069.00
2700FX-HRH	17 GAL	500 PSI	DUAL HI PRO 3 STAGE- 210" WL	2000 WATT	3	2324.00
All the machines with the external heater are have 2 cords because the machine has one cord and the heater has another. In situations were you can only plug one cord in you don't have to use the heater unit.

CARPET CLEANING EQUIPMENT AND JANITORIAL EQUIPMENT AT DISCOUNTED PRICING

ABOUT CARPET CLEANING

EVERYBODY HAS THEIR OWN WAY OF CARPET CLEANING. BEING IN THE BUSINESS FOR OVER 20 YEARS I HAVE SEEN ALMOST EVERY CONCEIVABLE WAY THERE IS TO CLEAN A CARPET. SOME WAYS YOU WOULDN'T BELIEVE, SOME WAYS ARE BETTER THAN OTHERS. BELOW ARE THE THREE MAIN WAYS OF CLEANING CARPETS.

EXTRACTION: A CARPET EXTRACTOR USES A CLEANING SOLUTION THAT IS FORCED INTO THE CARPET BY A PUMP THEN THE SOLUTION IS SUCKED OUT OF THE CARPET WITH HIGH POWER VACUUM MOTORS. PUMPS RANGE IN POWER. VACUUM MOTORS RANGE FROM 135 CFM TO OVER 200 CFM. HEATERS CAN BE ADDED TO THE MACHINES EITHER INTERNALLY OR EXTERNALLY. HEATED WATER TENDS TO BREAK UP GREASY DIRT FASTER. GOOD CHEMICALS, SEE CARPET CLEANING CHEMICALS FOR INFORMATION, WILL DO THE WORK FOR YOU. EXTRACTION LEAVES THE CARPET WETTER THAN OTHER SYSTEMS, BUT IT CLEANS DEEPER. PORTABLE AND TRUCK MOUNT EXTRACTORS HAVE A BASE UNIT AND A HOSE AND WAND. IF THE CARPET IS CLEANED PROPERLY IT SHOULDN'T TAKE MORE THAN 4 HOURS TO DRY.

SELF CONTAINED CARPET EXTRACTION MACHINE: SAME PRINCIPLE AS A EXTRACTOR BUT DOES NOT USE A HOSE AND WAND AND HAS A BUILT IN BRUSH THAT SCRUBS THE CARPET BETWEEN PUTTING THE SOLUTION DOWN AND VACUUMING IT UP. THIS SYSTEM IS GREAT FOR LARGE COMMERCIAL AREAS.

EXTRACTION RESTORATION: THE PROPER WAY OF DEEP CLEANING A CARPET. THIS IS A TWO STEP PROGRAM DESIGNED TO DEEP CLEAN THE CARPET. 1) PRESPRAY CARPET WITH A GOOD PRESPRAY OR USE A NON-RESIDUE SHAMPOO IN A SHAMPOO TANK. AGITATE CARPET WITH A ROTARY FLOOR BUFFER WITH A CARPET BRUSH ATTACHED. THIS LOOSENS UP THE DIRT THAT IS ON THE TOP AND DEEP IN THE CARPET. LET THE CHEMICAL SIT FOR A FEW MINUTES TO ACTUALLY BREAK UP THE DIRT AFTER YOU SCRUB. 2) EXTRACT THE CARPET WITH A GOOD EXTRACTION CLEANER (LIKE THE CHEMSPEC 90) OR USE A RINSING AGENT (LIKE TEXTILE RINSE FROM CHEMSPEC OR RINSE OUT FROM CELLO). THE RINSING AID WILL FLUSH OUT ALL CHEMICALS AND DIRT FROM STEP 1 AND FROM PREVIOUS CLEANINGS.

BONNET CLEANING: BONNETS ARE MADE OF SYNTHETIC, NATURAL OR A COMBINATION OF BOTH MATERIALS. BONNETS ARE ROUND PADS THAT GO UNDER STANDARD SPEED FLOOR BUFFERS. THE BONNETS USE FRICTION TO PULL DIRT FROM THE TOP OF THE CARPET FIBERS. THIS IS A GOOD SYSTEM WHEN CLEANING A CARPET FREQUENTLY, WHEN THE CARPET NEEDS TO BE DRY SHORTLY AFTER CLEANING OR WHEN A BROWNING PROBLEM OCCURS. HOWEVER, THIS IS NOT A DEEP CLEANING METHOD. IT IS RECOMMENDED THAT THE CARPET BE SPRAYED WITH THE DETERGENT THEN BUFFED WITH A DRY BONNET, WHEN THE BONNET GETS DIRTY FLIP IT OVER OR USE ANOTHER ONE.

ROTARY BRUSH OR DRY FOAM: USES A FOAMING SHAMPOO THAT MAY DRY TO A LIGHT POWDER OR CRYSTAL. THE SHAMPOO IS APPLIED WITH A BRUSH AND A STANDARD SPEED FLOOR BUFFER MACHINE, THE BRUSH GENERATES FOAM AS IT SPINS OR A SPECIALIZED MACHINE THAT GENERATES FOAM BEFORE GETTING AGITATED WITH A BRUSH. THIS SYSTEM IS LIKELY TO LEAVE THE CARPET WITH A STICKY RESIDUE IF NOT USED PROPERLY.

ENCAPSULATION: ENCAPSULATION HAS BEEN AROUND FOR 30 YEARS. SINCE THE FIRST CARPET SHAMPOOS THAT DRIED TO A CRYSTAL OR POWDER. YOU WOULD HAVE TO VACUUM AFTER THE SOLUTION DRIES. WITH THE INVENTION OF CERTAIN CHEMICALS ENCAPSULATION HAS COME A LONG WAY. THEIR ARE MANY DIFFERENT FORMULAS THAT DIFFERENT MANUFACTURERS USE. THE DIFFERENT FORMULAS WORK DIFFERENTLY.

NOTE: ALWAYS VACUUM CARPET THOROUGHLY BEFORE CLEANING, IT WILL MAKE A DIFFERENCE AND SAVE YOUR EXTRACTOR.
